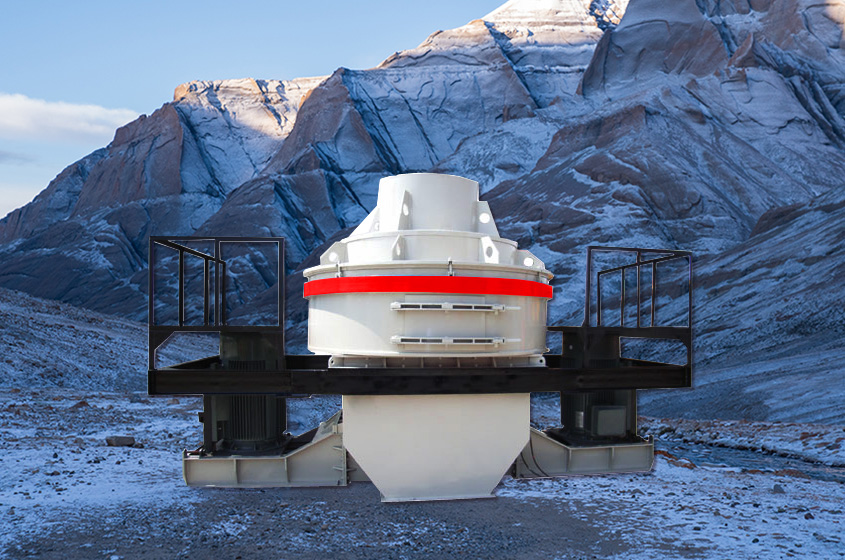

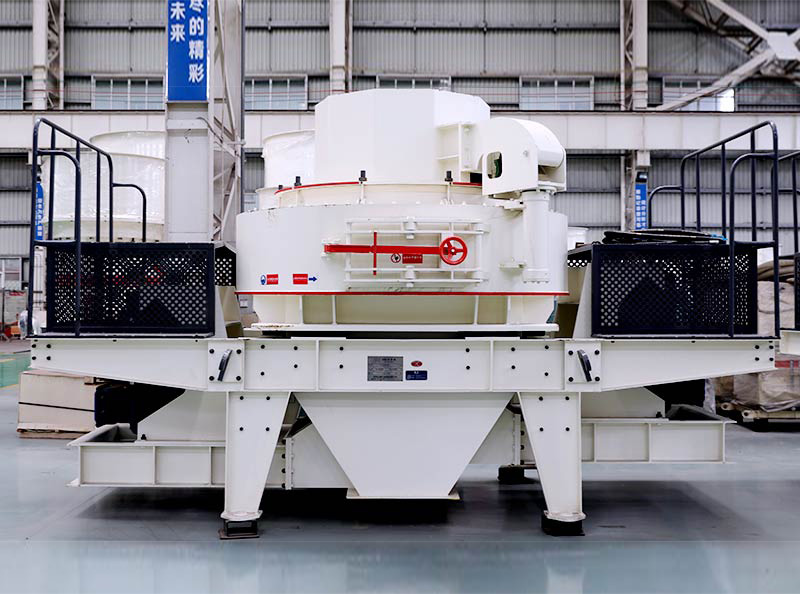

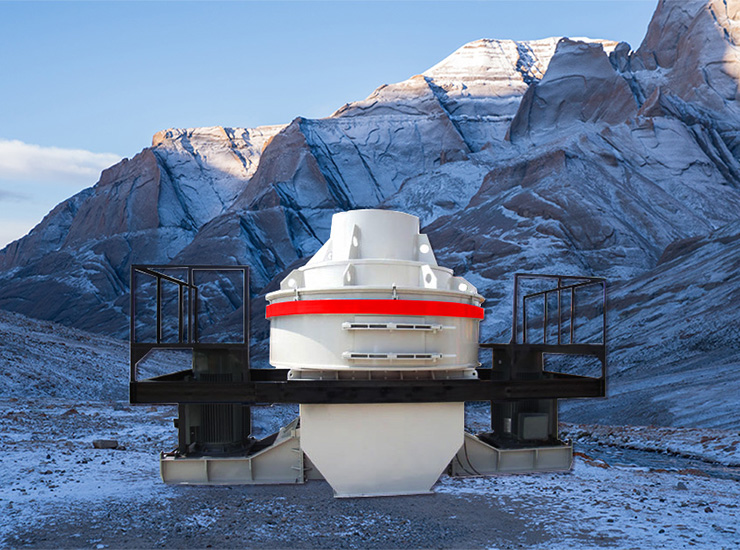

VSI vertical shaft impact crusher

feeding size: 30-50 mm
weight: 7.5-18 t
capacity: 60-500 tph
power: 110-440 kw

Applied material: limestone, basalt, river pebble, granite, quartz, iron ore, diabase, etc.

+86 155 3715 6339

Show Phone Number

Send Message

WHAT WE OFFER

Introduction of VSI vertical shaft impact crusher

VSI vertical shaft impact crusher is a newly researched equipment with international advanced level.

Advanced technology and modern processing equipment make it a leading role in this industry.

VSI vertical shaft impact crusher is designed for highway, railway, high-rise construction, municipal, hydroelectric dam construction, concrete mixing stations to provide high-quality sand and gravel aggregate, it is artificial sand and stone shaping field preferred device.

VSI vertical shaft impact crusher is a general term for the mechanical equipment used for producing artificial sand. Sand maker can crush and screen natural stone materials and gain sand different granularity that can be used in daily life, so that it can also be called sand crusher.

HOW IT WORKS

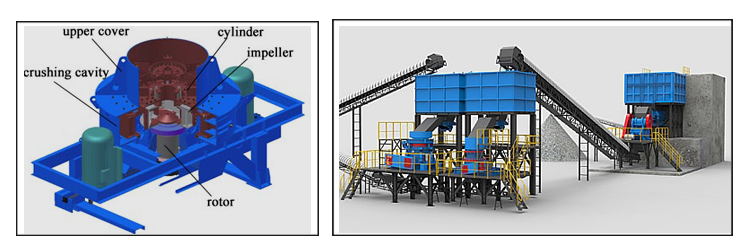

Operating Principle

Center Feeding:

Raw material falls down into feed hopper, then enters impeller through central entrance hole. It is accelerated in high-speed impeller, then is thrown out at speed of 60-75 m/s. When hitting impact plate, it is crushed. Final products are discharged downwards through outlet.

Ring Feeding:

Raw material falls down into feed hopper, then through ring, it is divided into two parts by material-dividing plate. One enters into impeller through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impeller at speed of 60-75 m/s, hit the materials coming down from outside of material-dividing plate. In this way, material is crushed.

MAIN FEATURES

The Features & Benefits

Advanced double-pump oil lubrication system guarantee shaft bearing lower temperature increase, longer life time, more reliable operation.

Main shaft is equipped with imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increases productivity.

Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.

Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure. It will stop the machine, in order to protect it.

Special dust-proof design for main shaft bearing fully avoid dust entering bearing lubrication part, which make sure the machine work normally.

Special feed opening structure makes it possible that center feeding and ring feeding comes together, in order to meet requirement of different stones. In addition, this equipment can not only crush st

Technical Parameters

Model		VSI7611	VSI8518	VSI9526	VSI1140
Capacity (t/h)	Center and Ring feeding	120-180	200-260	300-380	450-520
Capacity (t/h)	Center feeding	60-90	100-130	150-190	225-260
Max Feed Size (mm)	Soft material	<35	<40	<45	<50
Max Feed Size (mm)	Hard material	<30	<35	<40	<45
Rotation speed (r/min)		1700-1890	1520-1690	1360-1510	1180-1310
Power for double motor (kW)		110-150	180-220	264-320	400-440
Overall Dimension LWH (mm)		370021502100	414022802425	456024472778	500027003300
Weight (t)		7.5	10.5	14	16
Power Source		380v 50Hz
Vibrating Sensor		Inspect scope: 0.1-20mm/s adjusted continuously
Lubrication hydraulic pressure station		2*0.31 kW (Power for double oil pump)
Safety		To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter.
Power for oil box heater		2 kW

<< SCROLL >>

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.

Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
