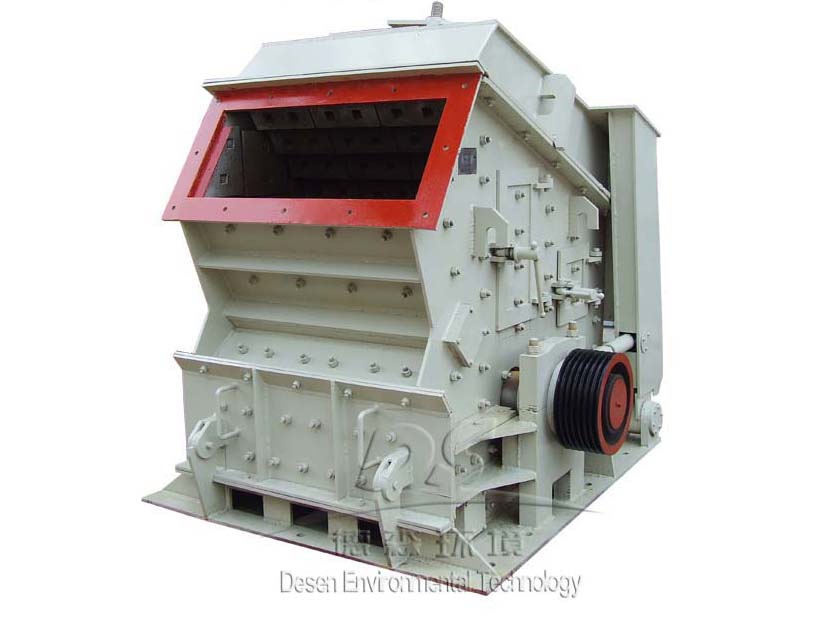

Impact Crusher
-
-
Power:7.5-300kw
-
Discharging size:0-60mm
-
Capacity:5-350tph

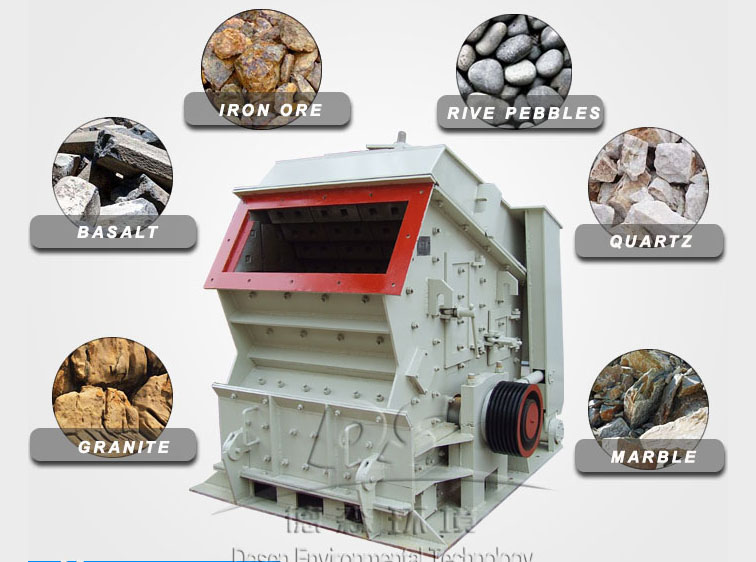

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc
WHAT WE OFFER
Introduction of Impact Crusher
Impact crusher can deal with any large,middle,and small materials ( granite, limestone, concrete, etc. ) with length no longer than 500mm, and compressive strength less than 350Mpa.
It is widely used in mining,highway,railway,and construction industries to produce artificial sandstone materials.
At present,the comprehensive capacity of impact crusher is prior to cone crusher and hammer crusher.
It has the characteristics of novel structure, no-bond connecting, high chrome plate hammer, special impact lining plate and energy saving.
The finished product is in cubical shape and the discharge granularities can be adjusted. It simplifies the crushing process.
HOW IT WORKS

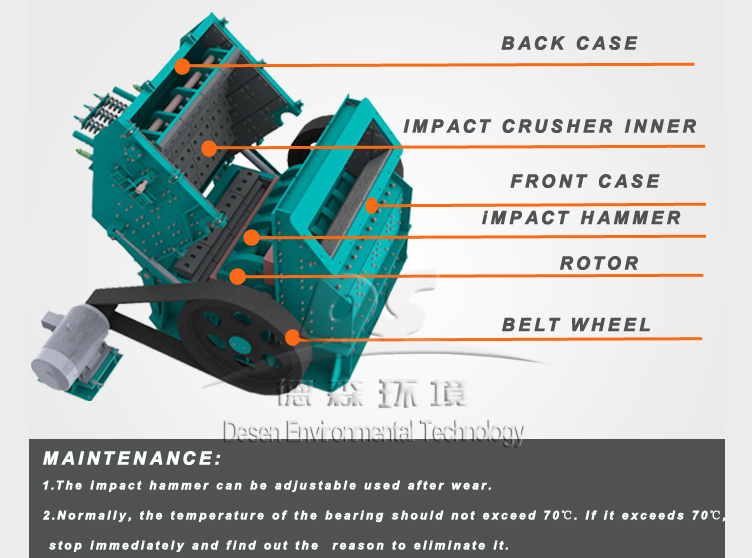

Operating Principle
When the impact crusher work, the rotor rotating high-speed under the motor drived, then the materials into the function area of plate hammer and impact crushing with the plate hammer in rotor.
Later break again in the counterattack device. And bounce back the plate hammer function area again to break from the counterattack foils. This process is repeated, until the materials being broken into the needed particle size and eduction by the discharging outlet.
You can change the grain-size and shape of materials by adjusting the gap between counterattack frame and rotor.
Stone directly into the turntable with rotating high speed from the machine upper, and then hit, friction, crushing with each other under the high speed centrifugal force, at last eduction from the discharging outlet.
Formed many times closed-circuit circulation, reach the required size by the control of screening equipment.
MAIN FEATURES
The Features & Benefits
Impact crusher is with unique simple structure, keyless connection.
Impact crusher is with high-chromium plating hammer and special impact liner plate.
Impact crusher is capable of highly efficient hard rock crushing while saving energy.
The final product of impact crusher is cubic, and the discharge grain size is adjustable to simplify the crushing circuit.
Easy maintenance, reliable performance.
Technical Parameters
| Model | Diameter of rotor (mm) | Width of rotor (mm) | Max feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
| PF0504 | 500 | 400 | ≤ 100 | 0-20 | 4-8 | 7.5 | 1.8 |
| PF1007 | 1000 | 700 | ≤ 200 | 0-30 | 15-30 | 37 | 6 |
| PF1010 | 1000 | 1050 | ≤ 300 | 0-50 | 40-60 | 75 | 12.3 |
| PF1210 | 1250 | 1000 | ≤ 300 | 0-50 | 50-90 | 95 | 15.8 |
| PF1212 | 1250 | 1250 | ≤ 300 | 0-50 | 60-110 | 130 | 18.6 |
| PF1214 | 1250 | 1400 | ≤ 300 | 0-60 | 80-145 | 180 | 19.2 |
| PF1315 | 1320 | 1500 | ≤ 300 | 0-40 | 100-180 | 220 | 21 |
| PF1320 | 1320 | 2000 | ≤ 300 | 0-60 | 280-350 | 300 | 24.5 |
Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
