Max feeding size:5-500mm
Power:15-280kw
Discharging size:1-100mm
Capacity:5-500tph

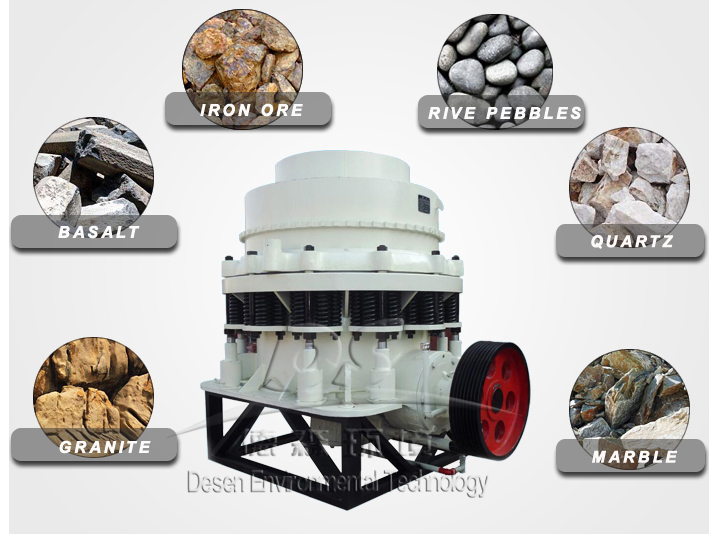

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc
Cone crusher is applicable for crushing various rocks and ores with medium hardness. It is widely used in metallurgical, construction, utilities, transport, chemicals, building materials industry, for breaking hard, medium hardness of the above various ores and rocks.Type of crushing chamber depends on application of the ores. Standard type applies to middle crushing; Short head type applies to middle-fine crushing. Short-head type is suitable for fine crushing.
Cone crusher has many good features, such as reliable structure, high productivity, easy adjustment, economic cost etc.Comparing with other kinds of crushers, cone crusher is quite excellent in hard material crushing and the final product has good shape. The innovations like stable lubrication system and excellent sealing system evidently reduce the production cost,helping client to achieve the highest level of profitability.

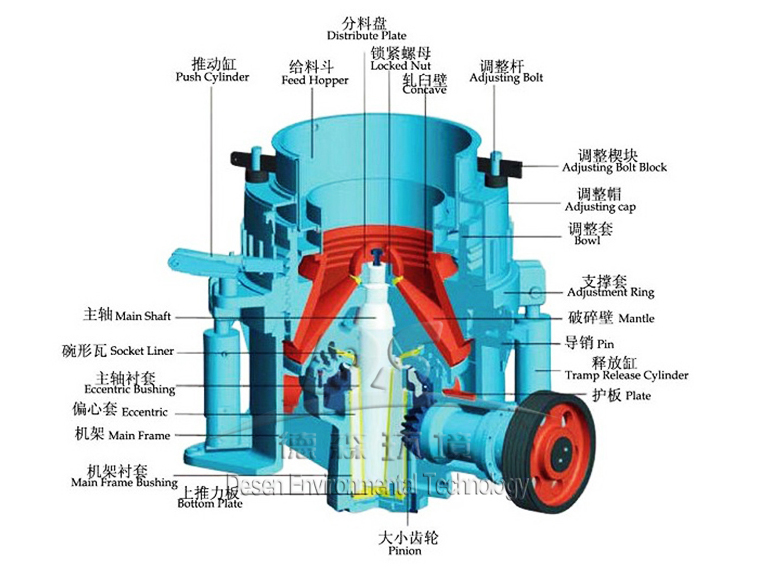

The working parts are two cutter heads, also called cones; one is fixed cone ( also called outer cone), the other one is movable cone ( also called inner cone. The outer cone is fixed, which is one part of frame; the movable cone is pluged freely in the eccentric bush, so the central axis between the fixed cone and the movable cone intersects and forms into a bevel. When rotating, the movable cone rotates along the inner suface of the fixed cone. The place that the movable cone pressedagainst the fixed cone becomes the crushing cavity, where the materials is pressed, impacted and bent by the movable cone. The place that the movable moves away from the fixed cone becomes the discharging open, where the crushed materials is discharged out under the role of gravity, and the materials are sent from the feed open.
Cone crusher includes spring cone crusher and hydraulic cone crusher according to its different machenicalstructure. Generally, the cone crusher consists of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, hydraulic pressure station for adjusting discharge opening etc.

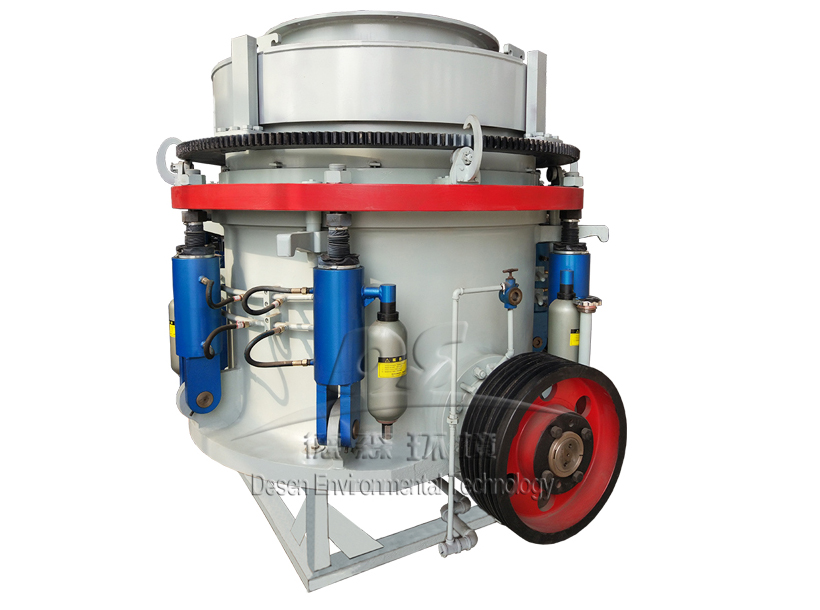

Hydraulic Cone Crusher:
Model | Cavity type | Minimum outlet size (mm) | Motor Power (kw) | Cone diameter (mm) | |||
HPC-160 | C | 150 | 13 | 120-240 | 160 | 13 | 950 |
HPC-160 | F | 76 | 6 | 55-180 | 160 | 13 | 950 |
HPC-220 | C | 225 | 13 | 150-430 | 220 | 18 | 1160 |
HPC-220 | F | 86 | 6 | 90-260 | 220 | 18 | 1160 |
HPC-315 | C | 290 | 13 | 190-610 | 315 | 26 | 1400 |
HPC-315 | F | 100 | 6 | 108-320 | 315 | 26 | 1400 |
HPC-400 | C | 320 | 13 | 230-700 | 400 | 33 | 1500 |
HPC-400 | F | 110 | 6 | 145-430 | 400 | 33 | 1500 |

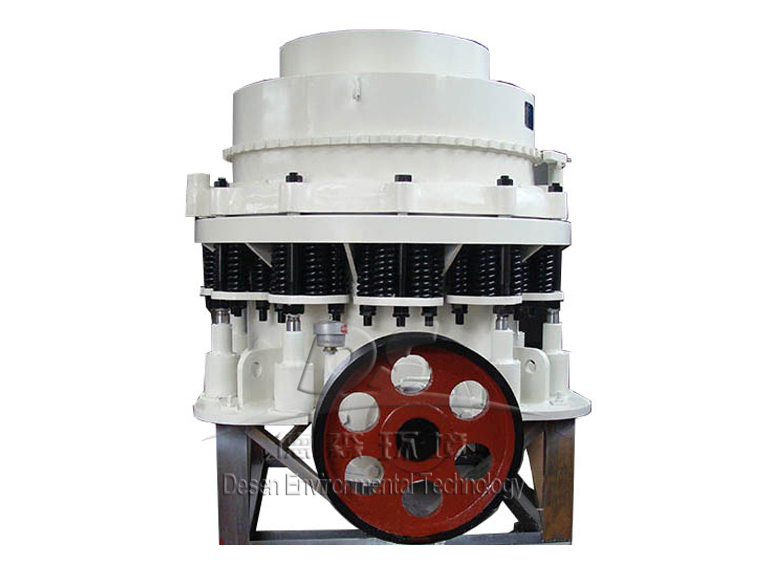

Spring Cone Crusher
Model | Cone diameter(mm) | Max feeding size(mm) | Width of outlet parts(mm) | Capacity(t/h) | Motor Power(kw) | Main shaft swing frequency(rpm) | Weight(t) |
PYB600 | 600 | 65 | 12-25 | 20-40 | 30 | 356 | 5 |
PYD600 | 600 | 35 | 3-13 | 15-25 | 30 | 256 | 5.5 |
PYB900 | 900 | 115 | 15-50 | 50-90 | 55 | 333 | 11.2 |
PYZ900 | 900 | 60 | 5-20 | 20-65 | 55 | 333 | 11.2 |
PYD900 | 900 | 50 | 3-13 | 15-50 | 55 | 333 | 11.2 |
PYB1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 |
PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 110 | 300 | 25 |
PYD1200 | 1200 | 50 | 3-15 | 18-105 | 110 | 300 | 25.3 |
PYB1750 | 1750 | 215 | 25-50 | 280-480 | 160 | 245 | 50.3 |
PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 160 | 245 | 50.3 |
PYD1750 | 1750 | 85 | 5-15 | 75-230 | 160 | 245 | 50.2 |
PYB2200 | 2200 | 300 | 30-60 | 60-1000 | 260-280 | 220 | 80 |
PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 260-280 | 220 | 80 |
PYD2200 | 2200 | 100 | 5-15 | 120-340 | 260-280 | 220 | 81.4 |
Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
Zhengzhou Desen Environmental Technology Co.,Ltd, took through the ISO9001 quality system certification, CE certification, etc. And the products had continuously exported to more than 50 countries, such as Russia, Kazakhstan, Saudi Arabia, Iran, Egypt, South Africa, Vietnam, Indonesia, Mexico, Brazil, Peru and so on.
