Max feeding size: 400mm
Welcome to Jaw crusher | Ball mill | Rotary kiln | Raymond mill – Desen machinery !

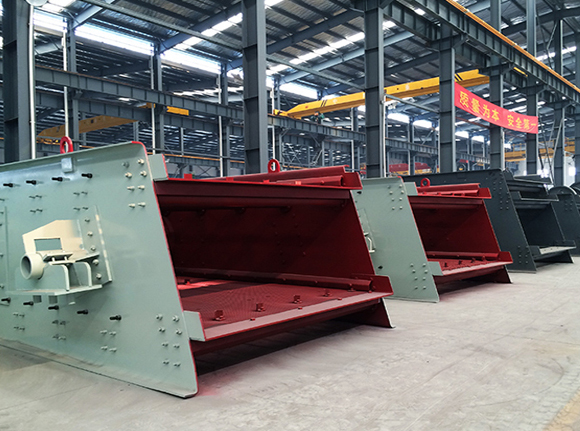

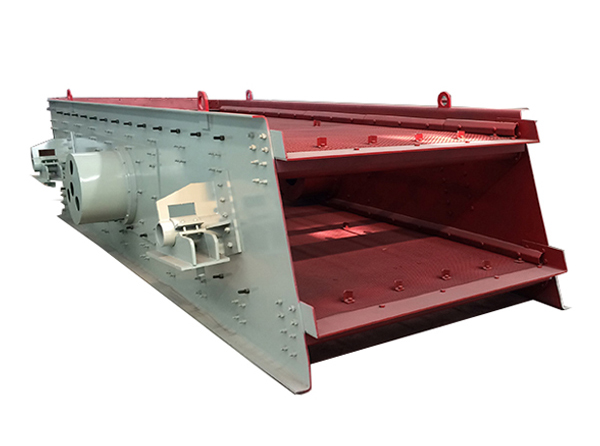

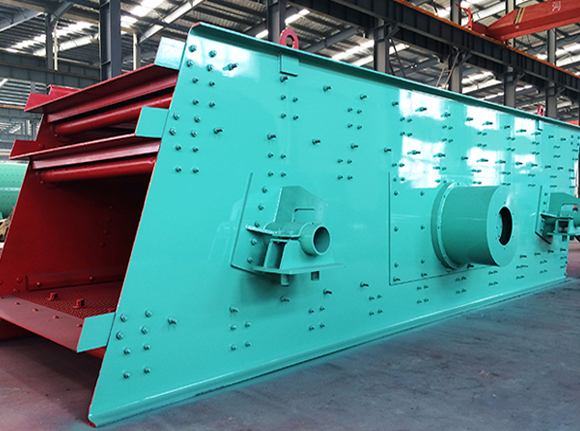

Vibrating Screen
-
-
Layer: 2-4
-
Power: 5.5-37kw
-
Capacity: 60-800tph
Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc
WHAT WE OFFER
Introduction of Vibrating Screen
Circular vibration screen are used to separate materials into various sizes for further processing, or for end use, Depending on the user's actual condtions. The material is separated by passing through a vibrating "screen box" which has a number of different sized screens, or meshes, which the material falls through like a sieve, the material falls onto attached conveyors which stock pile the end products.
HOW IT WORKS
Operating Principle
It adjusts the vibration amplitude by tube-shaped eccentric shaft vibration exciter and eccentric blocks. The machine body do circularly movation in order to let the materials sieved.
The circular vibration screen is a new multilayer high-efficient vibrating screen. long materials streaming line, different screening specifications, it is reliable structure ,strong vebrating force, and high screening efficiency, low noise, durable, easy maintenance, use safety, etc. The circular vibration screen widely used in mining, building materials, transportation, energy and chemical etc industry for material classification process.
MAIN FEATURES
The Features & Benefits
Long flowing line and many screening specifications.
Strong violent vibrating force.
High screening efficiency and low vibrating noise and energy consumption.
Firm and durable structure, convenient maintenance and safe operation.
High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.
High-precision screening reach to 96% or above, large processing capacity, etc.
Fully closed structure without dust pollution.
Technical Parameters
| Model | Layer | Max.feeding Size(mm) | Dimension Size(mm) | Double Swing(mm) | Vibrating Frequency(r/min) | Power(kw) | Capacity(t/h) |
| 2YK1235 | 2 | 400 | 1200*3500 | 5-9 | 870 | 5.5 | 60-180 |
| 2YK1545 | 2 | 400 | 1500*4500 | 5-9 | 870 | 15 | 120-275 |
| 3YK1545 | 3 | 400 | 1500*4500 | 5-9 | 870 | 15 | 120-275 |
| 3YK1548 | 3 | 400 | 1500*4800 | 5-9 | 870 | 15 | 120-275 |
| 4YK1548 | 4 | 400 | 1500*4800 | 5-9 | 870 | 15 | 200-275 |
| 3YK1848 | 3 | 400 | 1800*4800 | 5-9 | 870 | 18.5 | 200-330 |
| 4YK1848 | 4 | 400 | 1800*4800 | 5-9 | 870 | 18.5 | 250-330 |
| 3YK1860 | 3 | 400 | 1800*6000 | 5-9 | 870 | 22 | 250-586 |
| 4YK1860 | 4 | 400 | 1800*6000 | 5-9 | 870 | 22-30 | 300-586 |
| 3YK2060 | 3 | 400 | 2000*6000 | 5-9 | 730 | 37 | 300-720 |
| 4YK2060 | 4 | 400 | 2000*6000 | 5-9 | 730 | 30-37 | 400-720 |
| 3YK2460 | 3 | 400 | 2400*6000 | 5-9 | 770 | 37 | 400-810 |
| 4YK2460 | 4 | 400 | 2400*6000 | 5-9 | 770 | 37 | 450-810 |
Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
Our Benefits
Why You Should Choose Us
Zhengzhou Desen Environmental Technology Co.,Ltd, took through the ISO9001 quality system certification, CE certification, etc. And the products had continuously exported to more than 50 countries, such as Russia, Kazakhstan, Saudi Arabia, Iran, Egypt, South Africa, Vietnam, Indonesia, Mexico, Brazil, Peru and so on.
