Max feeding size:950mm
Welcome to Jaw crusher | Ball mill | Rotary kiln | Raymond mill – Desen machinery !

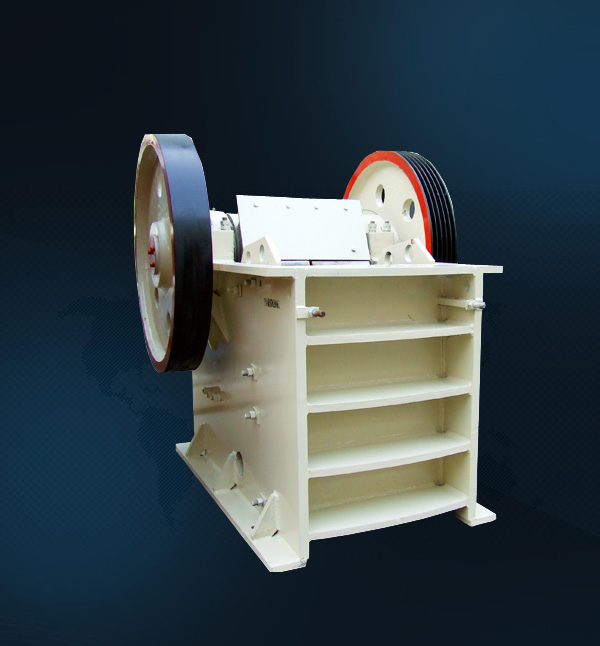

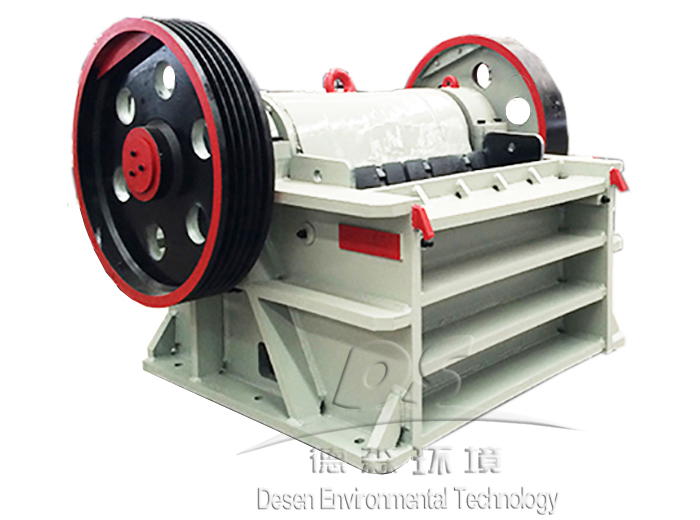

Jaw Crusher
-
-
Weight:1-110t
-
Power:5.5-220kw
-
Capacity:5-500tph

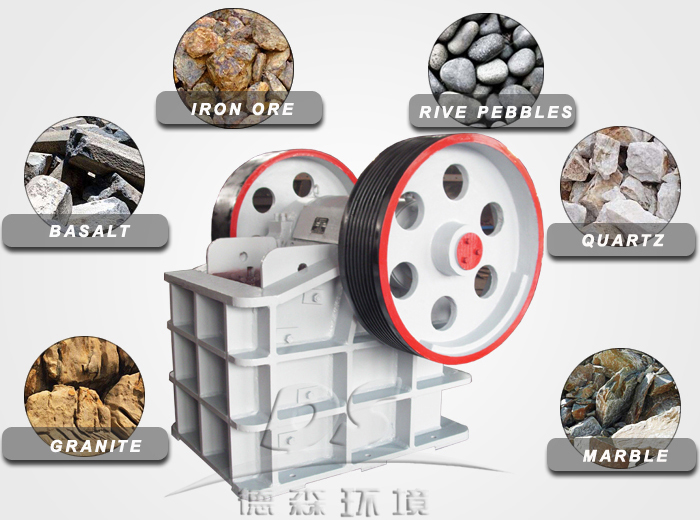

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc
WHAT WE OFFER
Introduction of Jaw Crusher
Jaw crusher is suitable for primary and secondary crushing rocks with compressive strength of 320 MPa.
It widely used in mining, metallurgy, construction, highway, railway, chemistry industry, ect.
The Jaw crusher of large and medium-size are the key products of our company.
We take the leading place in designing and producing large Jaw Crushers in China. All models are available according to your different requirements.
HOW IT WORKS
Operating Principle

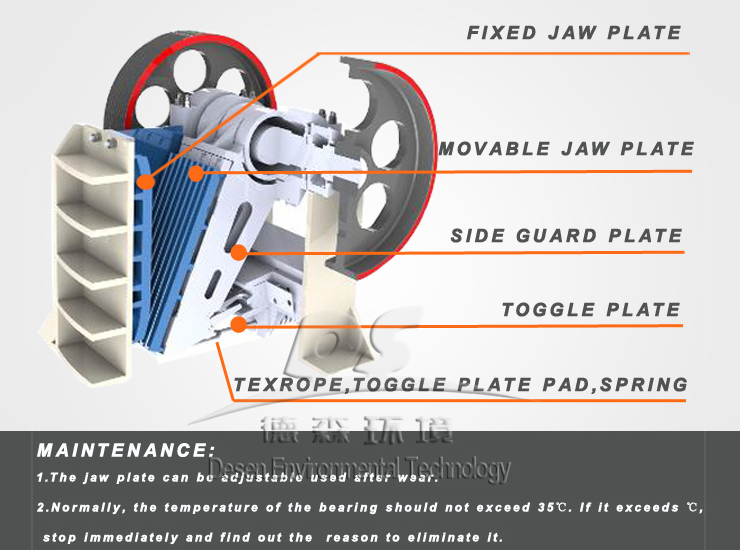

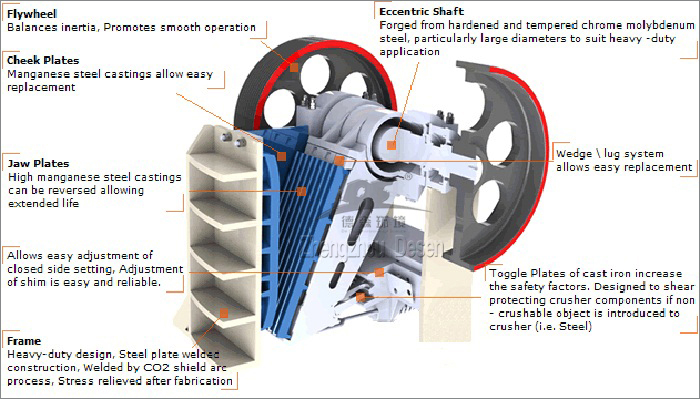

The electric motor drives the eccentric shaft by belt pulley to make moving jaw toothed plate move upward and downward, so as to push the moving jaw toothed plate to the fixed jaw toothed plate, to crush the material or splitting the material by doing reciprocating motion of approaching and leaving.
MAIN FEATURES
The Features & Benefits
Crushing cavity is deep and there is no dead area, which improves the feeding capacity and output.
High reduction ratio and uniform final product size.
The adjustment device of discharge-hole is reliable and convenient.
Reliable and safe lubrication system, convenient replacement of parts and small workload of maintenance.
Simple structure, operational reliability and low operation cost.
Technical Parameters
| Model | Inlet size (mm) | Max feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Power (kw) | Weight (t) | Dimension (L*W*H) (mm) |
| PE150*250 | 150*250 | ≤ 125 | 10-40 | 1-4 | 5.5 | 1.1 | 875*745*935 |
| PE150*750 | 150*750 | ≤ 120 | 10-40 | 8-25 | 15 | 3.5 | 1215*1520*1030 |
| PE200*1000 | 200*1000 | ≤ 160 | 15-50 | 10-36 | 22 | 6.5 | 1470*1930*1200 |
| PE250*1200 | 250*1200 | ≤ 210 | 10-50 | 20-60 | 45 | 9 | 1530*2165*1430 |
| PE300*1300 | 300*1300 | ≤ 250 | 30-90 | 20-65 | 75 | 12.5 | 2000*2320*1930 |
| PE250*400 | 250*400 | ≤ 210 | 20-80 | 6-25 | 15 | 3 | 1430*1310*1340 |
| PE400*600 | 400*600 | ≤ 350 | 40-100 | 15-40 | 30 | 6.8 | 1700*1730*1650 |
| PE500*750 | 500*750 | ≤ 425 | 50-100 | 50-100 | 55 | 13.5 | 1890*1916*1870 |
| PE600*900 | 600*900 | ≤ 480 | 75-125 | 75-125 | 75 | 20 | 1850*2500*2340 |
| PE750*1060 | 750*1060 | ≤ 630 | 80-140 | 80-140 | 110 | 28 | 2650*2350*3105 |
| PE900*1200 | 900*1200 | ≤ 750 | 95-165 | 150-300 | 132 | 51 | 3780*2870*3325 |
| PE1200*1500 | 1200*1500 | ≤ 950 | 150-300 | 400-800 | 220 | 106 | 4200*3300*3500 |
Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
Our Benefits
Why You Should Choose Us
Zhengzhou Desen Environmental Technology Co.,Ltd, took through the ISO9001 quality system certification, CE certification, etc. And the products had continuously exported to more than 50 countries, such as Russia, Kazakhstan, Saudi Arabia, Iran, Egypt, South Africa, Vietnam, Indonesia, Mexico, Brazil, Peru and so on.
