Temperature: 700-800°C
Welcome to Jaw crusher | Ball mill | Rotary kiln | Raymond mill – Desen machinery !

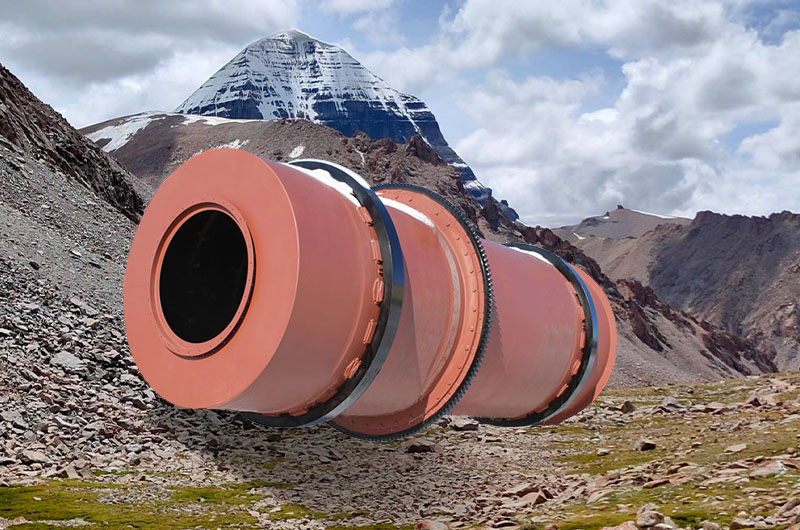

Sand Rotary Dryer
-
-
Power: 3-150 kw
-
Capacity: 1-150 tph
-
Weight: 3-190 t
Applied material: silica sand, river sand, fly ash, coal, quartz, gypsum, clay, carbonate calcium, limestone, etc.
WHAT WE OFFER

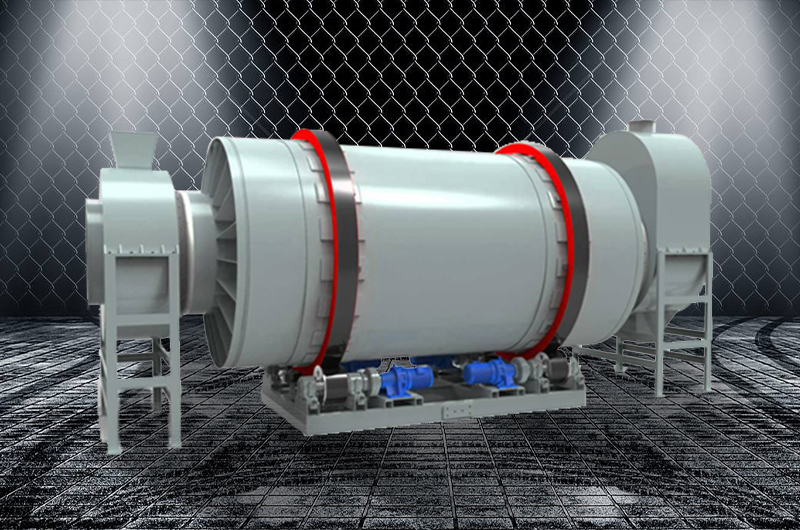

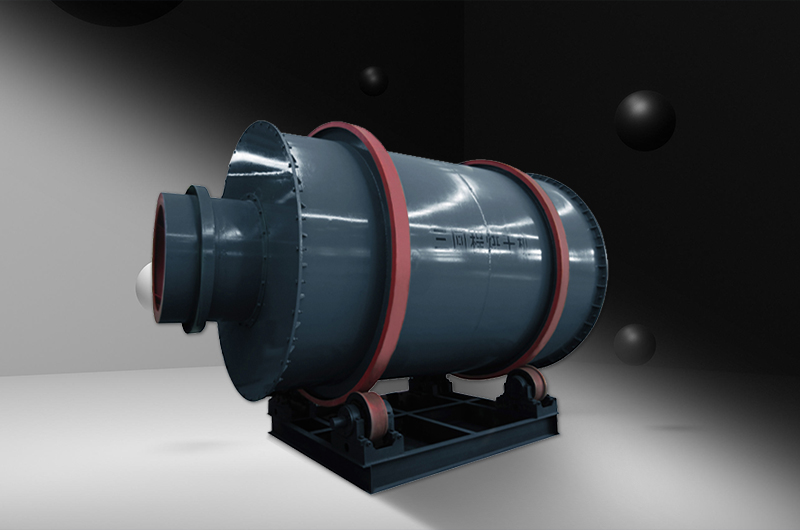

Introduction of Sand Rotary Dryer
Three-drum dryer is also called three-cylinder dryer and triple-drum dryer.
It has improved internal structure of single drum dryer, which prolongs the time of pre-drying of wet materials in the machine, thus improving 50% to 80% of production capacity compared with original single drum dryer.
MAIN FEATURES
The Features & Benefits
The needed investment is only 1/6 of foreign import product.
The final moisture of the materials is ensured to be below 0.5%, making it the first choice of dry-mixed mortar and slag powder production line.
The self heat preservation heat efficiency of the cylinder can reach as high as over 70%, thus improving the heat efficiency by 35%.
The fuel can be coal, gas and oil, and it can be used for drying lump, granulous and powdery materials whose granularity is below 20mm.
Compared with single drum dryer machine, its floor space is reduced by about 50%, infrastructure investment reduced by about 50% and electricity consumption reduced by 60%.
The final water content can be easily regulated according to customers’ requirement.
The temperature of outing exhaust gas is low and the service life of the dust removing equipment is long.
It needs not rack wheel an
Technical Parameters
| Item/Unit/Model | Φ2.5×7m | Φ2.7×7m | Φ3.0×7.0m | Φ3.2×7.0m | Φ3.6×8m |
| Diameter of outer cylinder（m） | 2.5 | 2.7 | 3 | 3.2 | 3.6 |
| Length of outer cylinder（m） | 7 | 7 | 7 | 7 | 8 |
| Cylinder volume（m?） | 16.63 | 16.63 | 52.678 | 52.678 | 81.38 |
| Rotating speed of cylinder（rpm） | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 |
| Initial moisture of slag（%） | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 |
| Final moisture（%） | 1 | 1 | 1 | 1 | 1 |
| Initial moisture of yellow ground（%） | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Final moisture of yellow ground（%） | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 |
| Highest intake air temperature（℃） | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Production capacity（T/h） | Yellow sand25-30 | Yellow sand30-35 | Yellow sand35-40 | Yellow sand45-50 | Yellow sand65-70 |
| Slag20-25 | Slag25-30 | slag30-35 | Slag35-40 | Slag60-65 | |
| Motor power（kw） | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 15×4 |
| Velocity ratio of reducer | 29 | 29 | 29 | 29 | 29 |
Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
