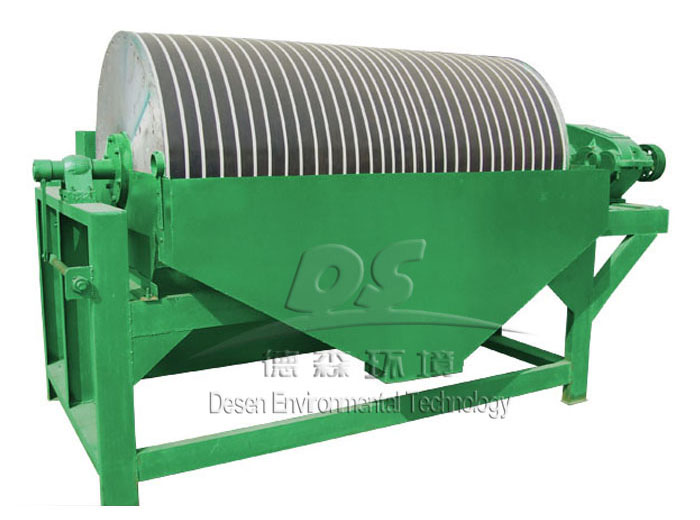

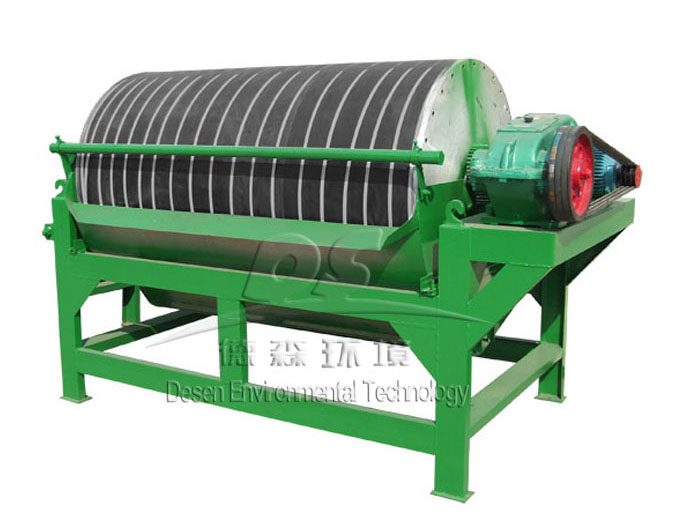

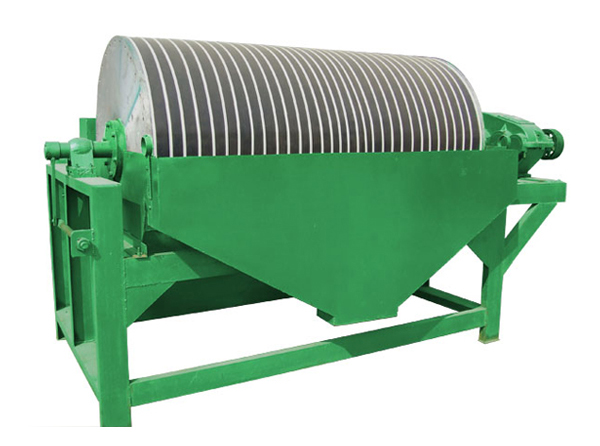

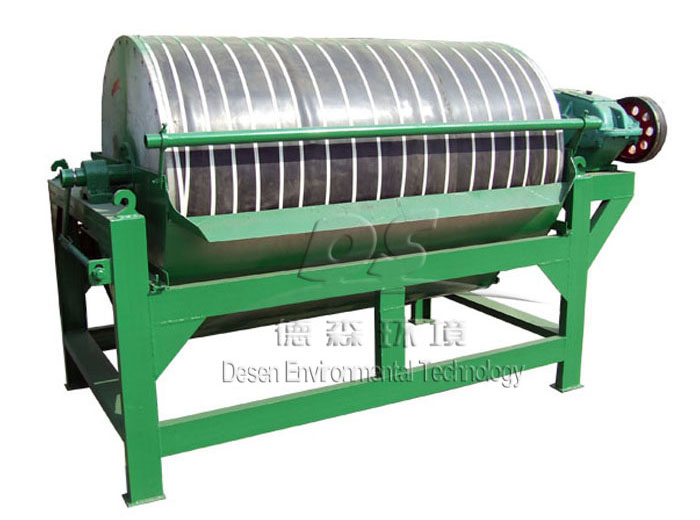

Magnetic Separator

Magnetic Field: 1000-3000G
Weight: 0.75-10t
Power: 1-15kw
Capacity: 5-300tph

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

+86 155 3715 6339

Show Phone Number

Send Message

WHAT WE OFFER

Introduction of Magnetic Separator

Magnetic Separators are designed to recover ferromagnetic materials. Magnetic separator are available in designs and sizes to provide solutions for all applications.

The heart of each separator is the magnetic system with its unique design,which has a proven record of high efficiency. It is available in cyclic design with process vessel diameters smaller than 3mm.

Magnetic Separator is one kind of efficient equipment for processing high and low magnetic minerals, such as magnetite, hematite, limonite, wolfram, ilmenite, and tantalum niobium, etc.

In recent years, it is also more and more applied in purifying quartz, feldspar and nepheline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.

HOW IT WORKS

Operating Principle

When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.

Technical Parameters

Model	drum diameter	drum length	rotary speed	capacity	power	outline size	weight
Model	mm	mm	rpm	tph	kw	mm	kg
CTB-6060	600	600	40	5-10	1.1	220013201250	750
CTB-6090	600	900	40	8-15	1.1	177013501270	910
CTB-6012	600	1200	40	10-20	2.2	235013001250	1050
CTB-6018	600	1800	40	25-40	2.2	295013001250	1350
CTB-7012	700	1200	35	15-30	3	253814401380	1500
CTB7015	700	1500	35	20-45	3	327714601380	2200
CTB7018	700	1800	35	30-65	3	382714801380	2500
CTB-9018	900	1800	30	35-68	4	296416051555	2800
CTB-9024	900	2400	30	49-97	5.5	370016501555	3500
CTB-9030	900	3000	30	55-115	5.5	417516651555	4300
CTB-1018	1000	1800	20	40-75	4	308015901790	4000
CTB-1021	1000	2100	20	45-85	4	338015901790	4800
CTB-1024	1000	2400	20	52-100	5.5	368016101790	5400
CTB-1030	1000	3000	20	64-125	7.5	428016301790	6000
CTB-1218	1200	1800	18	47-90	5.5	310021552025	5100
CTB-1224	1200	2400	18	82-120	7.5	374021752025	6100
CTB-1230	1200	3000	18	90-120	7.5	434021952025	7000
CTB-1530	1500	3000	14	140-260	11	374021752025	6100
CTB-1540	1500	4000	14	165-310	11	434021952025	7000

<< SCROLL >>

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.

Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
