Diameter of barrel: 0.5- 4m
Weight: 0.5-9t
Power: 1-3 kw
Effective volume : 0.15-45m3
Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

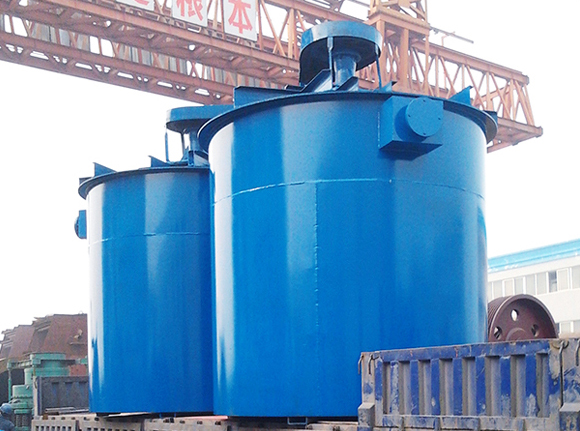

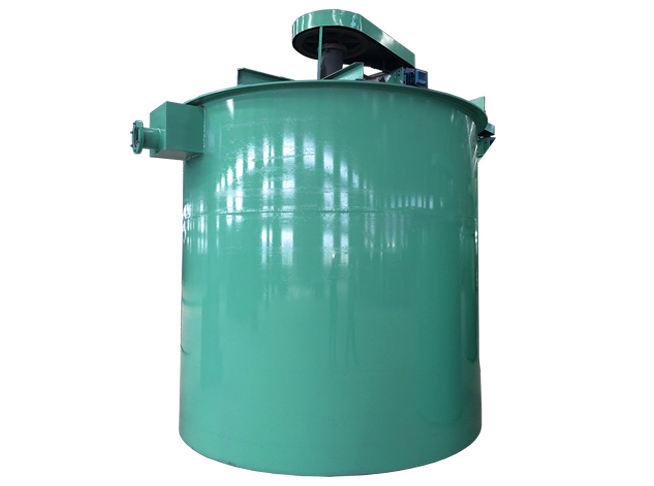

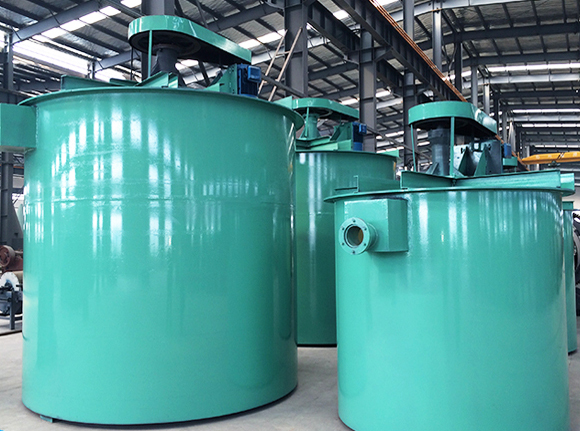

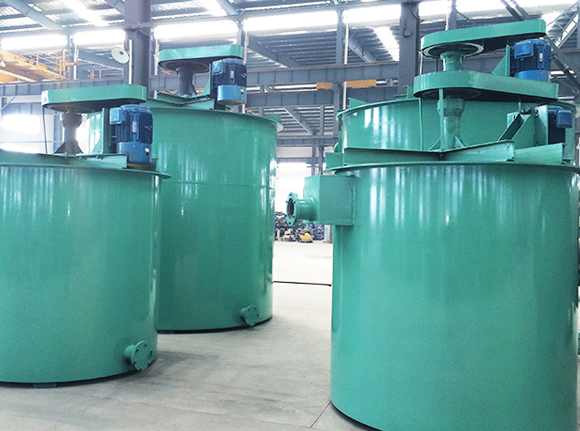

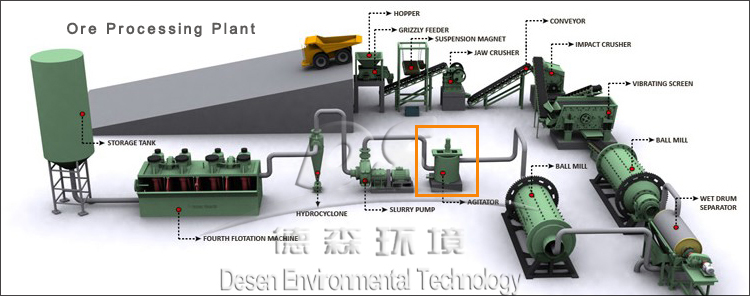

Agitation Tank / Mixing Barrel is the necessary equipment to extend the medicament reaction time and strengthen the drug reaction quality. It is mainly used to mix ore pulp before flotation in beneficiation process and make potions and ore pulp fully mixed. Also it can be used for roiling mixing or dilution mixing in chemical industry
The blending system adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy production of different technological requirement.
Materials can be heated or cooled according to technological requirement. The heating methods such as steam or electric heating can be selected according to customer requirements.
Various forms of blending vanes are suitable for production of different types of products.
The tank body and pipe are subjected to mirror polishing. Can customized stainless steel.
Bottom installation type dispersing head and pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
Electric control cabinet can completely supervise the operation of equipment, and display such as date, temperature, blending rotating speed etc.
Model | Tank diameter (mm) | Height (mm) | Effective Volume (m3) | Impller diameter (mm) | Rotary speed (rpm) | Motor (kw) | Outline size (mm) | Weight (kg) |
XB-0507 | 500 | 750 | 0.12 | 200 | 1000 | 1.1 | 900*900*1000 | 530 |
XB-1010 | 1000 | 1000 | 0.58 | 370 | 390 | 1.5 | 1130*1130*1490 | 1050 |
XB-1515 | 1500 | 1500 | 2.2 | 520 | 280 | 3 | 1750*1640*2190 | 1270 |
XB-2020 | 2000 | 2000 | 5.6 | 550 | 230 | 5.5 | 2380*2160*2850 | 1700 |
XB-2225 | 2200 | 2500 | 8.6 | 775 | 210 | 7.5 | 2500*2300*3000 | 2800 |
XB-2525 | 2500 | 2500 | 11.2 | 850 | 190 | 7.5 | 2990*2720*3540 | 3500 |
XB-3030 | 3000 | 3000 | 19 | 750 | 250 | 22 | 3600*3270*3010 | 5200 |
XB-3535 | 3500 | 3500 | 29 | 850 | 230 | 30 | 3920*3740*4970 | 7050 |
XB-4040 | 4000 | 4000 | 45 | 1000 | 210 | 37 | 4520*4320*5570 | 8920 |
Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
Zhengzhou Desen Environmental Technology Co.,Ltd, took through the ISO9001 quality system certification, CE certification, etc. And the products had continuously exported to more than 50 countries, such as Russia, Kazakhstan, Saudi Arabia, Iran, Egypt, South Africa, Vietnam, Indonesia, Mexico, Brazil, Peru and so on.
