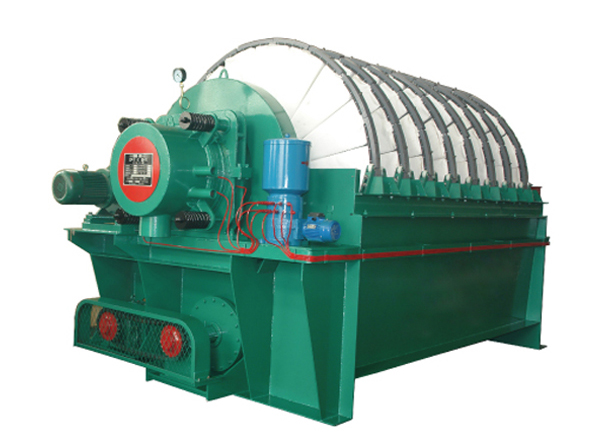

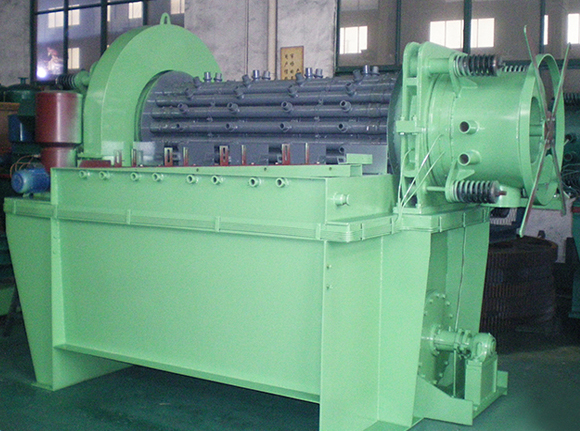

Disc vacuum filter is a soild-liquid separation equipment, which is separating solid from liquid through vacuum as filter power.
This machine is a kind of new disc vacuum filter specifically designed for iron concentrate, nonferrous metals concentrate dehydration, and it is also suitable for washing coal, ore dressing, non-metallic mineral, chemical, environmental protection industry.

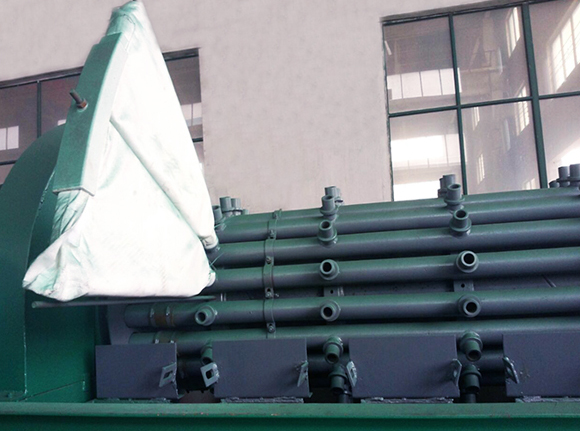

The machine is mainly composed of drum, distributing head, slurry trough, mixer, drum transmission, mixer transmission, bobbin winder, discharge device and so on.
At the effect of vacuum pump, the filter cause the pressure difference from the inside and outside of the filtering chamber, which makes the filter cloth on the surface of filter chamber be zone of negative pressure. The solid particle of the slurry inside the trough are absorbed on the surface of filter cloth and forms filter cake under the negative pressure, and the liquid is discharged by the vacuum pump along with gas. As the filter drum turns, the filter cake leaves liquid and the moisture continues being absorbed by the vacuum pump. When the filter cake turns to the discharge area, the pressure wind sucks it forming crack and then be scraped away. The filter cloth revives after being scraped filter cake because of the pressure wind. Then another circulation starts, entering the filter area, absorbing particle and forming filter cake.
Reduction in energy consumption
Higher vacuum levels
Low operating costs
High output capacity
Longer service life
applications
Filter area | GW-20m? |
Drum Specification(mm) | Φ2500×2640 |
Drum rotary speed( r/min) | 0.19-0.93 |
Feed capacity | 3-8T/H |
Drum motor type | YCT160-4B |
Main transmission power kw | 5.5 |
Agitator motor type | T100L-6 |
Mixing power kw | 2.2 |
Weight(kg) | 10600 |
Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
Note:Processing Capacity May Vary With Different Materisla Aan Feeding Sizes.
Zhengzhou Desen Environmental Technology Co.,Ltd, took through the ISO9001 quality system certification, CE certification, etc. And the products had continuously exported to more than 50 countries, such as Russia, Kazakhstan, Saudi Arabia, Iran, Egypt, South Africa, Vietnam, Indonesia, Mexico, Brazil, Peru and so on.
